THE CAR RADIO, AN INTERESTING STORY
The following story is reprinted, with permission, from “Uncle John’s Fast-Acting Long-Lasting Bathroom Reader”. Published by Bathroom Readers’ Press, Ashland, Oregon. Please visit http://www.bathroomreader.com
CAR TUNES
Radios are so much a part of the driving
experience, it seems like cars have always had
them. But they didn’t. Here’s the story.
SUNDOWN
One evening in 1929 two young men named William Lear and Elmer Wavering drove their girlfriends to a lookout point high above the Mississippi River town of Quincy, Illinois, to watch the sunset. It was a romantic night to be sure, but one of the women observed that it would be even nicer if they could listen to music in the car.
Lear and Wavering liked the idea. Both men had tinkered with radios – Lear had served as a radio operator in the U. S. Navy during World War I – and it wasn’t long before they were taking apart a home radio and trying to get it to work in a car. But it wasn’t as easy as it sounds: automobiles have ignition switches, generators, spark plugs, and other electrical equipment that generate noisy static interference, making it nearly impossible to listen to the radio when the engine was running.
SIGNING ON
One by one, Lear and Wavering identified and eliminated each source of electrical interference. When they finally got their radio to work, they took it to a radio convention in Chicago. There they met Paul Galvin, owner of Galvin Manufacturing Corporation. He made a product called a “battery eliminator” a device that allowed battery-powered radios to run on household AC current. But as more homes were wired for electricity, more radio manufacturers made AC-powered radios. Galvin needed a new product to manufacture. When he met Lear and Wavering at the radio convention, he found it. He believed that mass-produced, affordable car radios had the potential to become a huge business.
Lear and Wavering set up shop in Galvin’s factory, and when they perfected their first radio, they installed it in his Studebaker. Then Galvin went to a local banker to apply for a loan. Thinking it might sweeten the deal, he had his men install a radio in the banker’s Packard. Good idea, but it didn’t work – half an hour after the installation, the banker’s Packard caught on fire. (They didn’t get the loan.)
Galvin didn’t give up. He drove his Studebaker nearly 800 miles to Atlantic City to show off the radio at the 1930 Radio Manufacturers Association convention. Too broke to afford a booth, he parked the car outside the convention hall and cranked up the radio so that passing conventioneers could hear it. That idea worked – he got enough orders to put the radio into production.
WHAT’S IN A NAME
That first production model was called the 5T71. Galvin decided he needed to come up with something a little catchier. In those days many companies in the phonograph and radio businesses used the suffix “ola” for their names – Radiola, Columbiola, and Victrola were three of the biggest. Galvin decided to do the same thing, and since his radio was intended for use in a motor vehicle, he decided to call it the Motorola.
But even with the name change, the radio still had problems:
When Motorola went on sale in 1930, it cost about $110 uninstalled, at a time when you could buy a brand-new car for $650, and the country was sliding into the Great Depression. (By that measure, a radio for a new car would cost about $3,000 today.)
In 1930 it took two men several days to put in a car radio – the dashboard had to be taken apart so that the receiver and a single speaker could be installed, and the ceiling had to be cut open to install the antenna. These early radios ran on their own batteries, not on the car battery, so holes had to be cut into the floorboard to accommodate them. The installation manual had eight complete diagrams and 28 pages of instructions.
HIT THE ROAD
Selling complicated car radios that cost 20 percent of the price of a brand-new car wouldn’t have been easy in the best of times, let alone during the Great Depression – Galvin lost money in 1930 and struggled for a couple of years after that. But things picked up in 1933 when Ford began offering Motorolas pre-installed at the factory. In 1934 they got another boost when Galvin struck a deal with B. F. Goodrich tire company to sell and install them in its chain of tire stores. By then the price of the radio, installation included, had dropped to $55. The Motorola car radio was off and running. (The name of the company would be officially changed from Galvin Manufacturing to “Motorola” in 1947.)
In the meantime, Galvin continued to develop new uses for car radios. In 1936, the same year that it introduced push-button tuning, it also introduced the Motorola Police Cruiser, a standard car radio that was factory preset to a single frequency to pick up police broadcasts. In 1940 he developed with the first handheld two-way radio – the Handie-Talkie – for the U. S. Army.
A lot of the communications technologies that we take for granted today were born in Motorola labs in the years that followed World War II. In 1947 they came out with the first television to sell under $200. In 1956 the company introduced the world’s first pager; in 1969 it supplied the radio and television equipment that was used to televise Neil Armstrong’s first steps on the Moon. In 1973 it invented the world’s first handheld cellular phone. Today Motorola is one of the second-largest cell phone manufacturer in the world. And it all started with the car radio.
WHATEVER HAPPENED TO….
The two men who installed the first radio in Paul Galvin’s car, Elmer Wavering and William Lear, ended up taking very different paths in life. Wavering stayed with Motorola. In the 1950’s he helped change the automobile experience again when he developed the first automotive alternator, replacing inefficient and unreliable generators. The invention lead to such luxuries as power windows, power seats, and, eventually, air-conditioning.
Lear also continued inventing. He holds more than 150 patents. Remember eight-track tape players? Lear invented that. But what he’s really famous for are his contributions to the field of aviation. He invented radio direction finders for planes, aided in the invention of the autopilot, designed the first fully automatic aircraft landing system, and in 1963 introduced his most famous invention of all, the Lear Jet, the world’s first mass-produced, affordable business jet. (Not bad for a guy who dropped out of school after the eighth grade.)
CAR RADIO HISTORY
While there is much more to the history of car radios then that told in the story above. It is still interesting to see how two men, aided by a suggestion of one of their girlfriend's, could turn that idea into a company that became a GIANT in the electronics industry. I will attempt to add more history as I discover it.

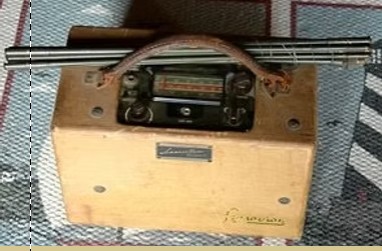

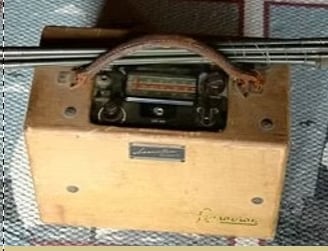

Here is a photo of a Learavian radio, by none other then William Lear.
I have at least one other Lear radio in my collection, so you can see he was involved in much more than just car radios.
What did cars look like during this era?

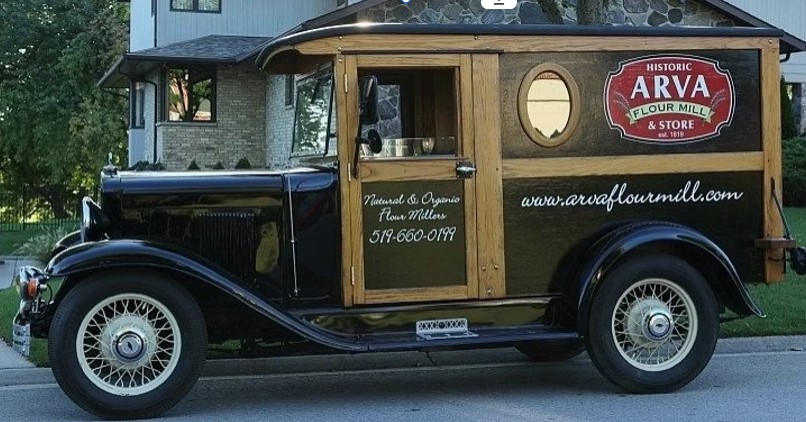

Here is a classic example of vehicles that were on the road when the first car radio was designed. This is a 1929 Chevy, courtesy of Bill Fellner. Bill says of the history of this car:
" Our Arva Flour Mill is 192 years old and stil working as a water powered mill. making it the oldest continuously running waterpowered flour mill in North America. When our Chev truck first rolled off the production line, our mill was already 110 years old. Hard to believe.
The truck was originally built as a pickup truck by a Toronto coachworks after it was built by Chev. At that time , if you wanted a truck, you just bought the chassis and fenders from Chev and then had a coachworks add the body. In the 60's the owner at that time ordered the plans for the huckster from Huckster coachworks in the US and had it done by a cabinetmaker .
I found it in a barn last year (2010) where it had been stored for about 15 years after comming off a mushroom farm. It was in great shape, having been semirestored in the 60's. The woodframe is oak and was in excellent shape. I stripped it and re varnished it. The rest was fir plywood which I covered with thecommercial black vinyl and built the oval windows for it. I had the help of a marketing designer who came up with the designs."
This 1929 truck had a radio from around 1932-33 installed in it. In those days the radio controls were mounted on the steering column, not in the dash, and the chassis was mounted where ever they could find room for it. In this case the speaker and the radio chassis is in the same metal cabinet. Metal was used to help shield some of the ignition noise coming from the spark plugs. In the very early installations, around 1930-31, they even used a separate battery to prevent static/noise from the ignition system.

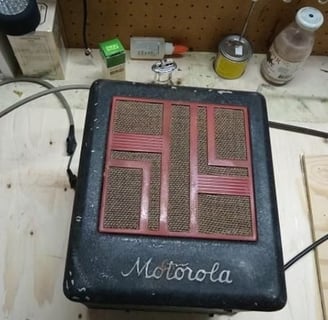

Below is a photo of the radio as it was found in the vehicle:

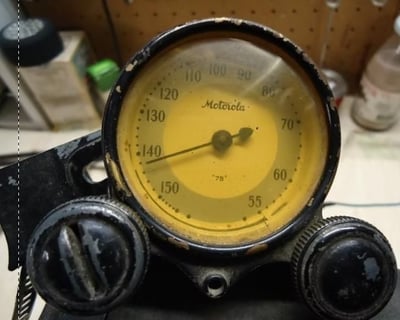

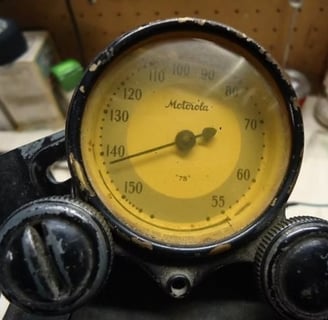

Below is a photo of the "control head" for the radio. This mounted on the steering column and the controls were connected to the radio chassis via steel cables, much like the speedometer cable.
